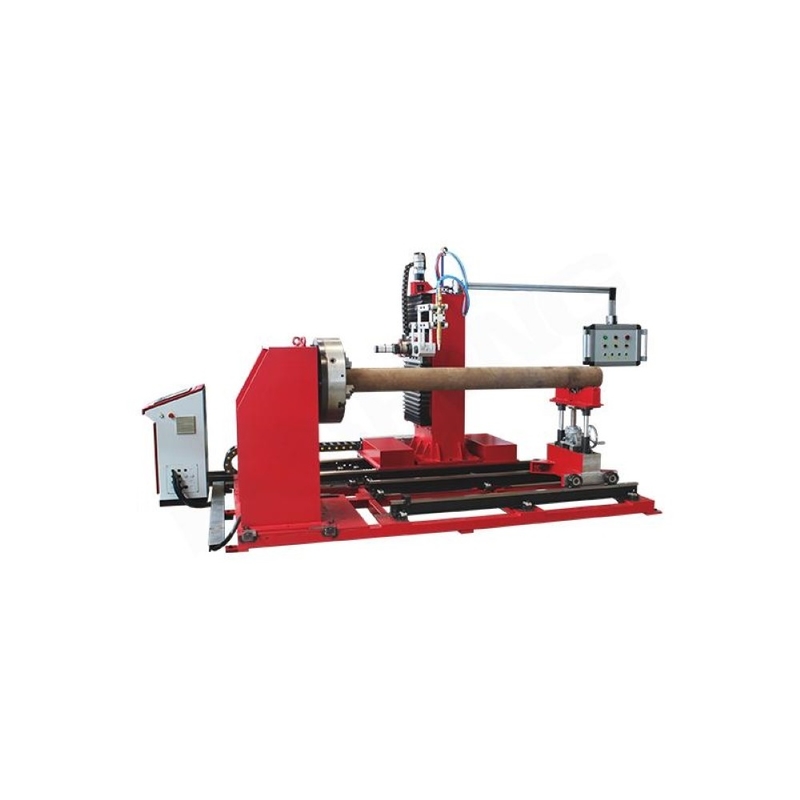

PipeCut cutting machine
This intersecting line cutting machine can automatically calculate and cut the profiles of intersection position, profile position edge elbow, etc. t is mainly applied to the processing of piping structures in industries of construction, chemical, shipbuilding, engineering machinery, metallurgy, electric power etc. it is quite convenient to machine above mentioned workpieces without additional operational computing and programming but simply input the data of intersection position, hole position and bevel.
| Technical Parameters | |||
| Axis | 2~6 axis | OD | 50~1500(mm) |
| Length | 2000~18000(mm) | Thickness | 5~60(mm) |
| Max.payload | 8000(kg) | Torch No. | Plasma/Oxy-fuel |
| Cutting speed | 80~2500(mm/min) | Idle speed | 0~10000(mm/min) |
| Cutting method | Plasma/Oxy-fuel | ||
| Bevel | V/Y ±45°(Plasma),+60°(Oxy-fuel) | ||
| Bevel standard | AWS / fixed bevel / adjustable bevel | ||
