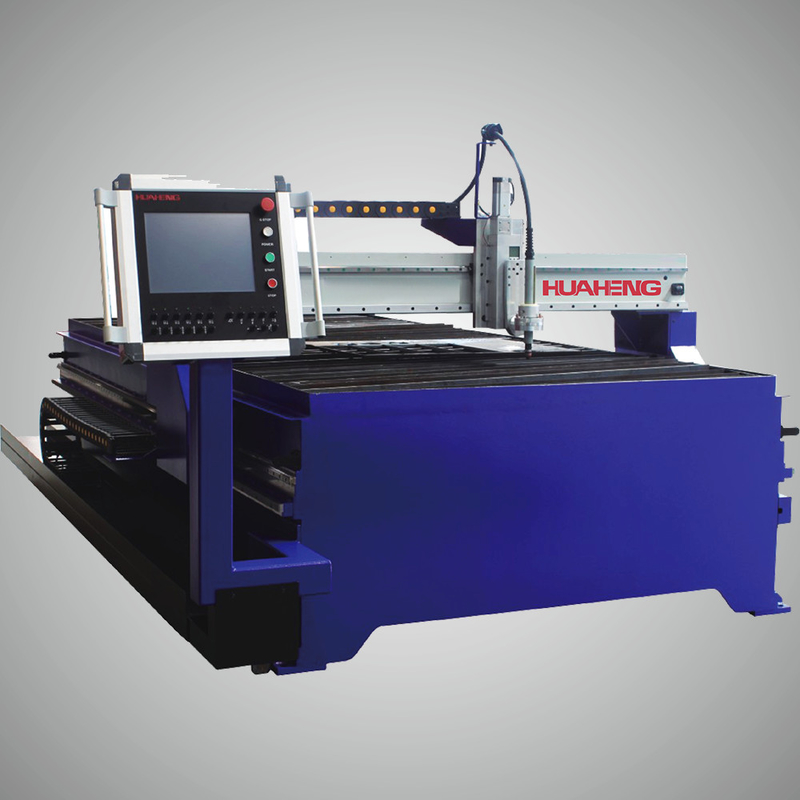

FineCut Integrated CNC Cutting Machine
Description
High speed, high accuracy CNC plasma cutting machine, with compact modular construction for easy and quick installation. The optional fume extraction table and collector help to meet the environment protection standards.
Technical parameter
| Model | 6020 | 4020 | 3015 |
| Effective cutting range (mm) | 6000x2000 | 4000x2000 | 3000x1500 |
| Overall width (mm) | 3200 | 2000 | |
| Drive speed | 0-12000mm/min; 0-24000mm/min; 0-50000mm/min | ||
| Max. torches configurable | 1 | ||
