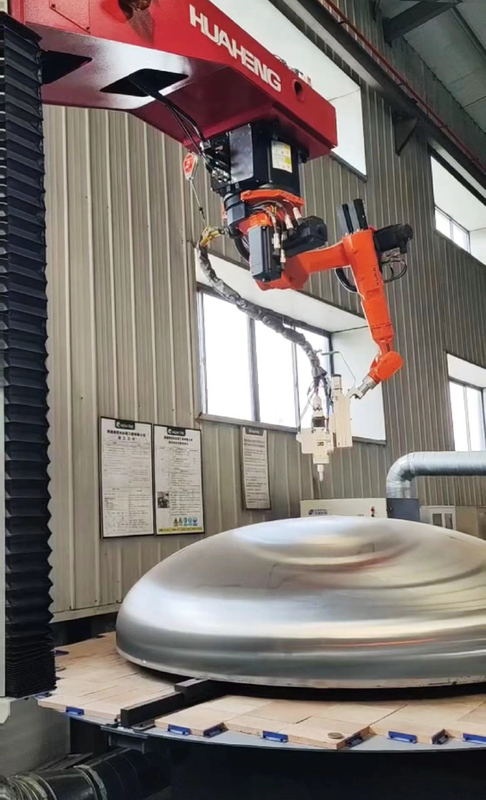

3D multi-axis robot head laser cutting machine
Equipped with KUKA six axis robot and multiple external axes, offline programming is more efficient Equipped with 2D and 3D cutting functions, with great processing flexibility, strong scalability, high accuracy, and stable and reliable performance Ultra large processing range, customizable fixtures, parts conveying lines, and other non-standard devices
| Name | Unit | HR2000 | HR3000 | HR4000 |
| Processing head range | mm | Φ2000 | Φ3000 | Φ4000 |
| Lifting stroke of cantilever | mm | 0~2000 | 0~2000 | 0~2000 |
| Transverse stroke of cantilever | mm | 0~1000 | 0~1000 | 0~1000 |
| Acceleration | G | 0.8 | 0.8 | 0.8 |
| Robot motion radius | mm | 1000~2000 | 1000~2000 | 1000~2000 |
| Extended external axis | piece | 0~4 | 0~4 | 0~4 |
| Laser generator power | W | 1000~12000 | ||
