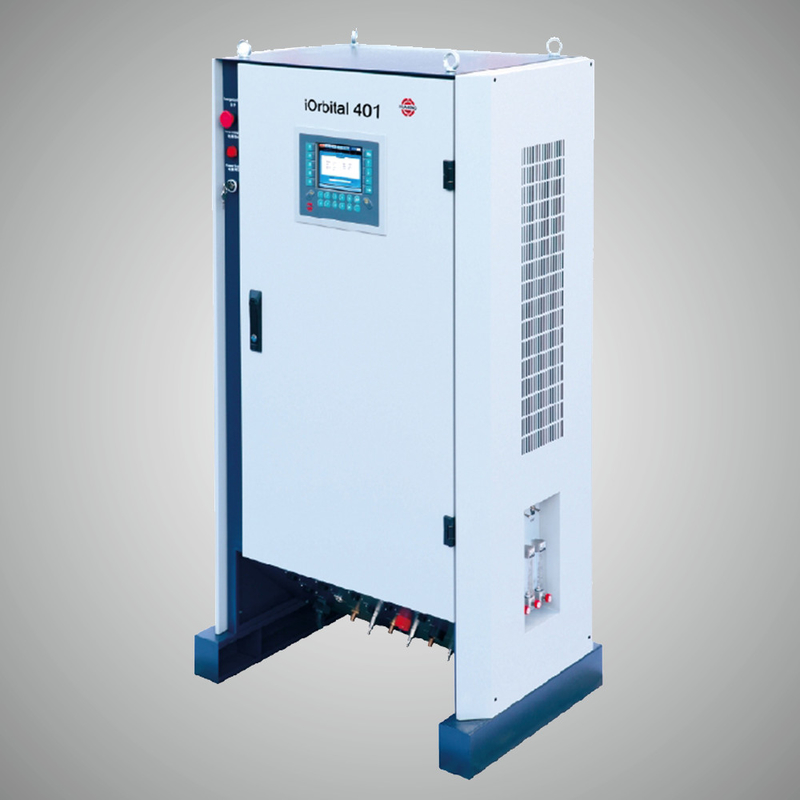

The iOrbital401 distributed digital welding power source and the iOrbital600 HotWire Programmable Orbital Welding DC inverter power source are designed and manufactured according to the latest technology by Kunshan Huaheng Welding Co. The iOrbital600 is a comprehensive welding power source comprising a main power source, wire heat source, main control system, monitoring system, water cooling system and more. It is a cutting-edge, digital, user-friendly, intelligent, flexible and stable solution. Its control system is a PC controller, which is an open and updatable embedded 32-bit Windows CE operating system. It supports concentrated setting, storing and controlling of all the function parameters. It is commonly used in thermal power, valve, coal mine machinery, nuclear plant and boiler applications.
Technical parameter
|
Name |
iOrbital401 |
|
Power Type |
Inversion |
|
Welding current |
5~400A |
|
Duty cycle (20 degrees Celsius) |
400A60% 310A100% |
|
No-load voltage |
72V |
|
Input voltage |
3*380V±10% 50/60Hz |
|
Input power |
13.5KVA |
|
Power cooling |
air cooling |
|
Monitor |
6.5 inch Chinese/English display |
|
Programmatically |
Panel programming |
|
Show |
Wired controller/panel/Chinese and English real-time parameter display |
|
Programmable storage |
100Group |
|
Expert parameter storage |
Prestore |
|
Partitionable |
20 |
|
Torch cooling |
External circulating water cooling |
|
Water tank model |
CW-04 water tank |
|
Power supply weight(kg) |
260 |
|
Manufacturing Standards |
GB15579-2004 |
|
Insulation safety class/standard |
H/IP23 |
|
Size L*W*H(mm) |
710*500*1500 |
