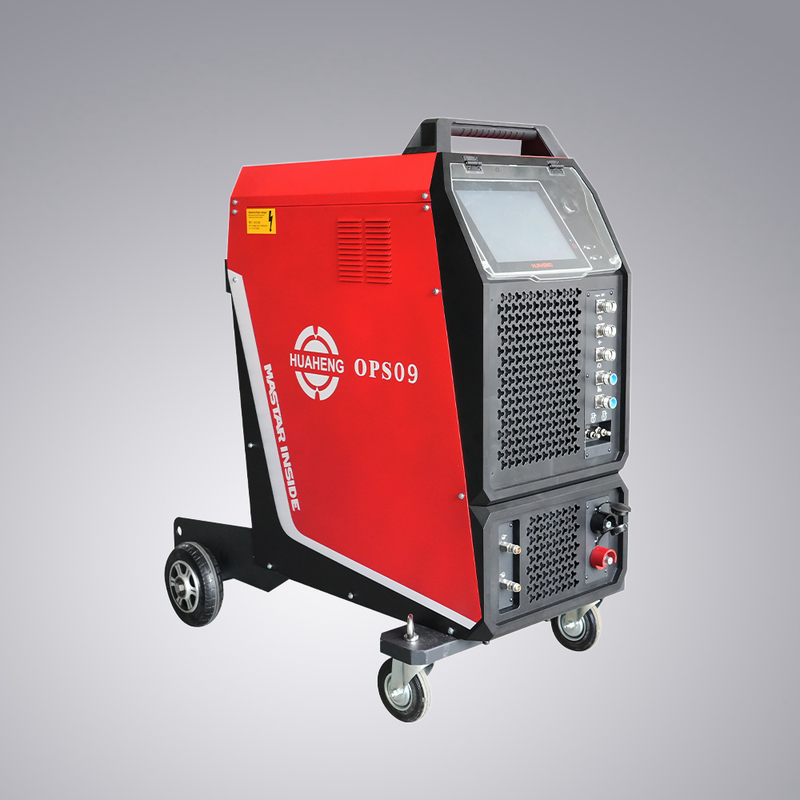

OPS09 Digitalized Orbital Welding Power Source
OPS09 Digitalized Orbital Welding Power Source

OPS09 Digitalized Orbital Welding Power Source

Product Details

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: Custom

Get Best Price

Product Details

Product Description
Highlight:
Model:
MASTAR-inside Control Platform OPS09
Current Output:
≤1A
Suitable Material:
Carbon Steel, Stainless Steel, Alloy Steel
Oscillation Maximum Speed:
1800mm/min
Cooling Method:
Water Cooling
Servo-drive Wire Feeding Speed:
6000mm/min
Shielding Gas:
Argon
Model:
MASTAR-inside Control Platform OPS09
Current Output:
≤1A
Suitable Material:
Carbon Steel, Stainless Steel, Alloy Steel
Oscillation Maximum Speed:
1800mm/min
Cooling Method:
Water Cooling
Servo-drive Wire Feeding Speed:
6000mm/min
Shielding Gas:
Argon
OPS09 Digitalized Orbital Welding Power Source
  • HUAHENG MASTAR-inside Control Platform
  • Brand-new digitalized inverter: Current output accuracy improved within 1A control for the whole welding process. Adjustable sharp current pulses for peak-to-base switching
  • Servo-drive rotation: Servo-drive with high precision reducer, wider range of speed adjustment, high precision control, smooth motion for welding
  • Servo-drive wire feeding: Smoother wire feeding, quick adjustment response, maximum speed reaches 6000mm/min
  • Oscillation: maximum speed reaches 1800mm/min
  • AVC: Better accuracy, optional switching for peak-to-base tracking
  • Added angular control: Programmable for torch angular motion control, auto-adjustment during the welding process, achieve orbital of simulating skilled welder operation



OPS09 Digitalized Orbital Welding Power Source 0

​OPS09 Digitalized Orbital Welding Power Source 1



i-Weld Heavy Wall Pipe Welding Head Technical Parameter





Suitable Material

Carbon Steel, Stainless Steel, Alloy Steel

Wire Size

Compatible with 4in (100mm) 1kg standard wire spool, wire size OD1.0mm (standard), equipped with special wire feeding wheel for stainless steel material
