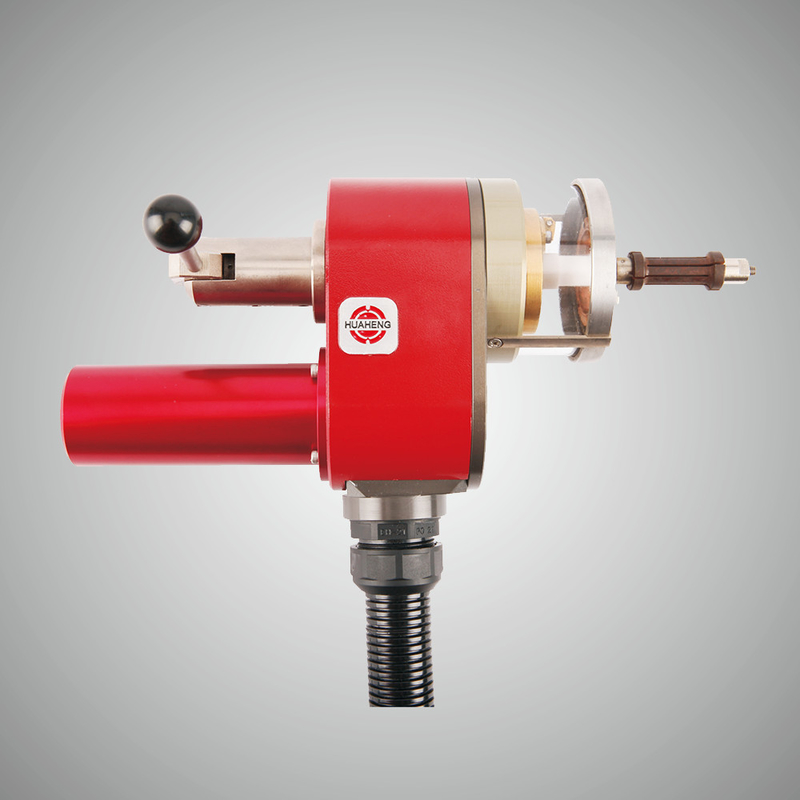

This welding head is specially designed for fully automatic TIG welding of tube/tube welding, and is suitable for automatic welding in the form of general tube sheets.It can weld various types of tube/tube sheet joints such as carbon steel,stainless steel,etc.,mainly with flush tubes and no wire filling.It can realize orbital TIG tube/sheet welding to achieve ideal welding results with high reproducibility.It can be used with Tube Master200, iOrbital4000, iOrbital5000 program-controlled welding power sources,mainly used in chemical,food,medicine,various heat exchangers,power plants,military and nuclear power industries.
Suitable for welding of stainless steel and titanium alloy tube sheets in power stations and condensers;
Self-dissolving without wire feeding,small size,light weight,easy to operate;
Expansion core positioning,the welding head is designed to be attached to the workpiece,accurate positioning,safe and reliable,convenient and fast;
Closed welding to ensure high quality welds;
No winding,water and electricity design,enhanced water cooling system,high temporary cut-off rate,long continuous working time.
|
Weldable material |
Carbon steel, stainless steel, titanium alloy |
|
Weldable pipe diameter(mm) |
Φ16－Φ38(5/8″－1 1/2″) |
|
Tube sheet form |
Tube flush |
|
Tungsten electrode diameter(mm) |
￠2.4 |
|
Spinning speed(rpm) |
0.6～12 |
|
Torch inclination |
0º,7ºreplaceable (Standard7°) |
|
Protective gas |
Argon |
|
Cooling method |
Water cooling |
|
Cooling flow(ml/min) |
≥300 |
|
Rated current |
100A duty cycle 60% |
|
Weight(kg) |
3.65(without cable) |
|
Dimensions(mm) |
310×80×165 |
