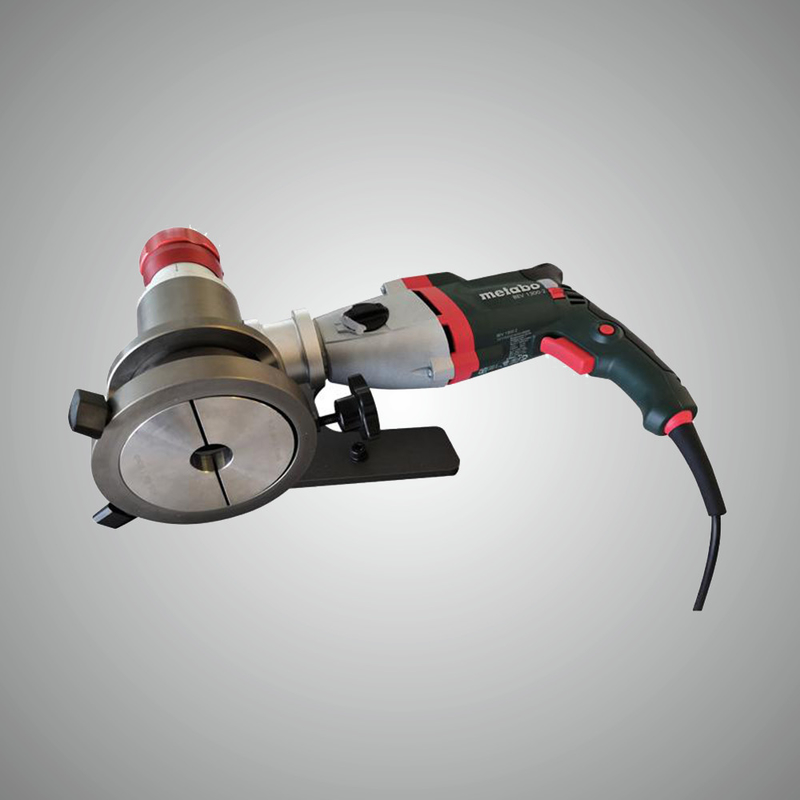

It is specially designed for stainless steel thin-wall pipe end processing.
The processing tool has a very high surface quality pipe end plane without burr,and the end face is 100%vertical;
Wide processing range(OD6mm~76mm);Special supports can be used for beveling;
Two-edge high-efficiency coated blade;
Imported adjustable speed motor drive,more powerful function;
Ideal pre-welding preparation tools and equipment for automatic welding and manual welding are light,portable and safe to use.
|
Model |
FM3.0 |
Dimension |
435*425*195mm(17.0*16.7*7.7inch) |
|
Power supply |
AC200V 50/60Hz |
Power |
1010W |
|
Speed |
8-45r/min;23-140r/min |
Processing materials |
Stainless steel, low alloy steel, aluminum, copper |
|
Weight |
7.4kg |
Noise intensity |
About 88db |
|
Outer diameter of pipe |
6~76mm (0.23~3 inch) |
Maximum thickness |
3mm(0.118inch) |
