Model: |
TC150 |
Weldable Pipe Diameter (mm): |
Φ6～Φ38.1mm |
Rotation Speed (rpm): |
0.6–11.9 |
Shielding Gas: |
Argon |
Cooling Method: |
Water |
Dimensions (mm): |
405×110×42 |
Model: |
TC150 |
Weldable Pipe Diameter (mm): |
Φ6～Φ38.1mm |
Rotation Speed (rpm): |
0.6–11.9 |
Shielding Gas: |
Argon |
Cooling Method: |
Water |
Dimensions (mm): |
405×110×42 |

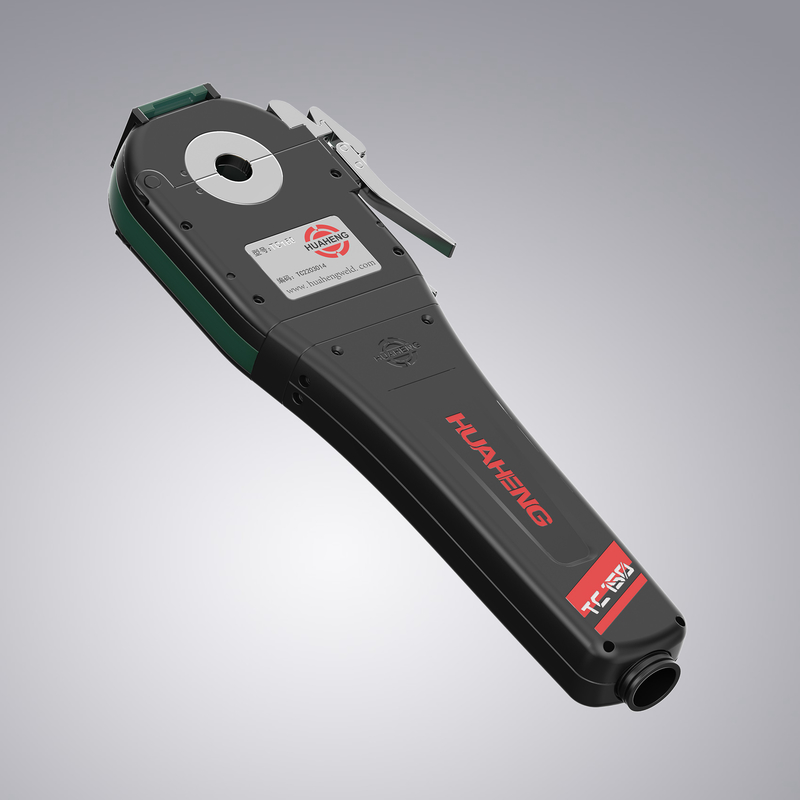

This machine is a specialized orbital automatic TIG (Tungsten Inert Gas) welding head designed for butt welding of tubular components without filler wire. Prior to welding, the sealed chamber is filled with shielding gas to ensure optimal weld protection. Both the head body and fixture feature internal cooling. Customized compound fixtures within the client-specified pipe diameter range ensure precise workpiece alignment, eliminating the need for tack welding, thereby delivering high efficiency and superior weld quality. The system achieves precise orbital TIG tube/tube welding with exceptional repeatability and ideal results. It is widely used in electronics, instrumentation, pharmaceutical, engineering installation, military, and nuclear power industries for tube/tube welding applications
| Key Characteristics |
|---|
| Suitable for thin-wall pipes: carbon steel, stainless steel, titanium, and titanium alloys |
| Compatible with multiple joint types: tube-tube, tube-elbow, tube-tee, tube-flange, etc. |
| Lightweight aluminum construction with ergonomic streamlined 3D design |
| Patented gas path design and fully sealed chamber structure for enhanced shielding effectiveness |
| Flexible automatic centering fixture with hidden quick-release mechanism enables rapid on-site installation |
| Self-fusing orbital welding method without filler wire, ideal for field operations |
| Water-cooled head for extended continuous operation |
| Integrated handle controls for user-friendly operation |
| Model | TC150 |
|---|---|
| Weldable Tube Diameter (mm) | Φ6–Φ38.1 |
| Rotation Speed (rpm) | 0.6–11.9 |
| Shielding Gas | Argon |
| Cooling Method | Water |
| Cooling Flow Rate (ml/min) | ≥300 |
| Rated Current | 75A 60% Duty Cycle |
| Dimension A (mm) | 110 |
| Dimension B (mm) | 53 |
| Dimension C (mm) | 42 |
| Dimension D (mm) | 405 |
| Weight (kg) | 3.5 (excluding cable) |
| Overall Dimensions (mm) | 405×110×42 |
