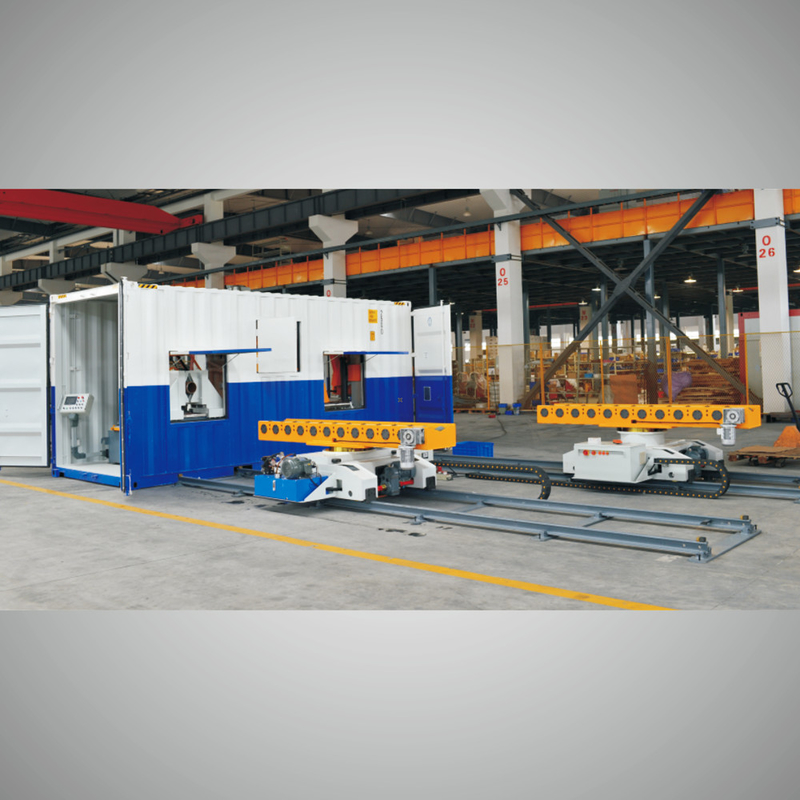

The equipment is installed and fixed into the container to form a pipeline prefabricated mobile workstation, suitable for small and medium-sized short-term projects
Basic configuration: cutting and beveling workstation + simple logistics conveying system + container
Production efficiency: high (prefabrication of small assembly lines can be carried out on the construction site)
On-site equipment installation performance: good (main equipment, spreaders and power distribution are installed and fixed in the container, and the logistics site is placed)
Suitable for short-term projects of small and medium projects
|
Serial number |
Equipment (material) name |
Specifications |
Unit |
Quantity |
Remark |
|
1 |
Pipe beveling workstation (including the following) |
PCBPS-24 |
set |
1 |
For pipe cutting and beveling |
|
2 |
Pipe CNC cut-to-length band saw |
CMBS-24 |
tower |
1 |
CNC fixed length, horizontal double column |
|
3 |
Pipe CNC end beveling machine |
PCEBM-24 |
tower |
1 |
Radial and axial CNC feed |
|
4 |
Specially modified container |
6058x2438x2896mm |
indivual |
1 |
Retrofitting electrical systems, lighting and ventilation systems |
|
5 |
Band Sawing Machine Feed Logistics Conveying System |
PFS-24 |
set |
1 |
For feeding with band saw |
|
6 |
Band Sawing Machine Track Trolley Conveying System |
PRGV-24A |
set |
1 |
For cutting with band saw |
|
7 |
Beveling machine track trolley conveying system |
PRGV-24B |
set |
1 |
For beveling machine |
