Name: Digital Control Length Measurement Carbon Steel Band Saw
Brand: Kunshan Huaheng Welding Co., Ltd.
SKU: HBS-24/CMBS-24
Availability: InStock

Product Details

Model Number: HBS-24/CMBS-24

Document: Product Brochure PDF

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Length Measurement Carbon Steel Band Saw, Digital Control Carbon Steel Band Saw


Power Input:	380V 50Hz	Rating Power:	11.5kw
Hydraulic Motor Power:	1.5kw	Main Motor Power:	7.5kw
Cooling Motor:	0.125kw	Controlling:	PLC+ Touch Screen

Power Input:	380V 50Hz
Rating Power:	11.5kw
Hydraulic Motor Power:	1.5kw
Main Motor Power:	7.5kw
Cooling Motor:	0.125kw
Controlling:	PLC+ Touch Screen

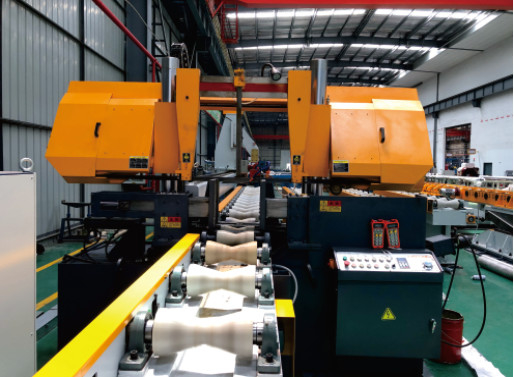

Digital Control Length Measurement Carbon Steel Band Saw

Suitable material: carbon steel, steel alloy, low temperature steel, stainless steel, duplex steel
Structure: horizontal type with 2 columns gantry, double oil cylinder
Clamping: Automatic self-aligned hydraulic clamping
Automatic clamping, automatic feeding, emergency stop while blade broken
Stepless adjustable speed of cutting and blade feeding
Metal thin wall saw blade, which achieve narrow cut notch, less material wasting, less power consuming
Suitable pipe diameter: DN50-600(Ф57-630mm)
Suitable wall thickness:5-90mm
Optional grating length measuring function(CMBS-24

Digital Control Length Measurement Carbon Steel Band Saw 0

Cutting method	Blade sawing, water cooling
Max. payload	5000kg
Blade extension	Hydraulic
Sawing speed	17-85m/min
Weight	3900kg
Blade dimension	6980mmx4lmmx1.3 mm
